- C-Class
-
C-Class C 180 Kompressor2002-2007 SedanC-Class (W203) -
C-Class C 200 CDI2000-2007 SedanC-Class (W203)
-
C-Class C 200 CGI Kompressor2003-2007 SedanC-Class (W203)
-
C-Class C 200 Kompressor2000-2007 SedanC-Class (W203)
-
C-Class C 220 CDI2000-2007 SedanC-Class (W203)
-
C-Class C 2302005-2007 SedanC-Class (W203)
-
C-Class C 230 Kompressor2004-2007 SedanC-Class (W203)
-
C-Class C 2402000-2007 SedanC-Class (W203)
-
C-Class C 270 CDI2000-2007 SedanC-Class (W203)
-
C-Class C 2802005-2007 SedanC-Class (W203)
-
C-Class C 280 4-matic2005-2007 SedanC-Class (W203)
-
C-Class C 3202000-2007 SedanC-Class (W203)
-
C-Class C 320 CDI2005-2007 SedanC-Class (W203)
-
C-Class C 3502005-2007 SedanC-Class (W203)
-
C-Class C 200 CDI2003-2008 KupeC-Class Kupe (CL203) -
C-Class C 200 CGI Kompressor2003-2008 KupeC-Class Kupe (CL203)
-
C-Class C 200 Kompressor2001-2008 KupeC-Class Kupe (CL203)
-
C-Class C 2202002-2008 KupeC-Class Kupe (CL203)
-
C-Class C 220 CDI2001-2008 KupeC-Class Kupe (CL203)
-
C-Class C 2302005-2008 KupeC-Class Kupe (CL203)
-
C-Class C 3202002-2008 KupeC-Class Kupe (CL203)
-
C-Class C 3502005-2008 KupeC-Class Kupe (CL203)
-
C-Class C 180 Kompressor2002-2007 UniversalC-Class T-Model (S203) -
C-Class C 200 CDI2001-2007 UniversalC-Class T-Model (S203)
-
C-Class C 200 CGI Kompressor2003-2007 UniversalC-Class T-Model (S203)
-
C-Class C 200 Kompressor2001-2007 UniversalC-Class T-Model (S203)
-
C-Class C 220 CDI2001-2007 UniversalC-Class T-Model (S203)
-
C-Class C 2302005-2007 UniversalC-Class T-Model (S203)
-
C-Class C 230 Kompressor2004-2007 UniversalC-Class T-Model (S203)
-
C-Class C 2402001-2007 UniversalC-Class T-Model (S203)
-
C-Class C 270 CDI2001-2007 UniversalC-Class T-Model (S203)
-
C-Class C 2802005-2007 UniversalC-Class T-Model (S203)
-
C-Class C 3202001-2007 UniversalC-Class T-Model (S203)
-
C-Class C 3502005-2007 UniversalC-Class T-Model (S203)
- CLK
-
CLK 200 CGI2003-2009 KupeCLK (C209) -
CLK 200 Kompressor2002-2009 KupeCLK (C209)
-
CLK 220 CDI2005-2009 KupeCLK (C209)
-
CLK 270 CDI2002-2009 KupeCLK (C209)
-
CLK 2802005-2009 KupeCLK (C209)
-
CLK CLK 200 Kompressor2003-2010 KabrioletCLK Kabriolet (A209) -
CLK CLK 2802005-2010 KabrioletCLK Kabriolet (A209)
- SLK
-
SLK 200 Kompressor2004-2011 KabrioletSLK (R171) -
SLK 2802005-2011 KabrioletSLK (R171)
-
SLK 3002009-2011 KabrioletSLK (R171)
-
SLK 3502004-2011 KabrioletSLK (R171)
Pulsuz Çatdırılma

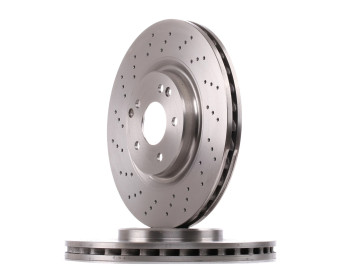

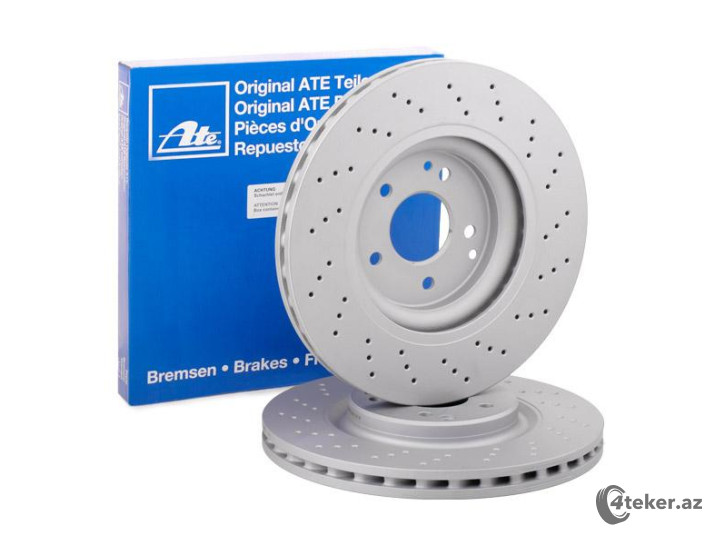

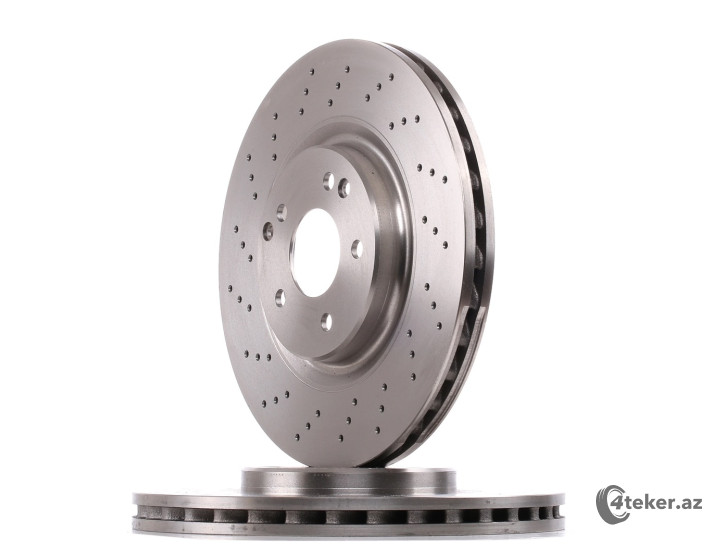

Ön əyləc diski ATE 24012801771
Məhsulun kodu: 10002000
ATEBrend kodu: 24 0128 0177 1
Qiyməti:201.00₼
Xarakteristikası
| Brend | ATE |
| İstehsalçı ölkə | Almaniya |
| Brend kodu | 24 0128 0177 1 |
| Buruq-Ø | 13 mm |
| Daxili diametri [mm] | 154 mm |
| Deliklərin sayı | 5 |
| Diametr [mm] | 330 mm |
| Hündürlük [mm] | 46.5 mm |
| Minimum qalınlıq [mm] | 26 mm |
| Müalicə | Yüksək karbon |
| Mərkəzləşdirmə diametri [mm] | 67 mm |
| Qazma dairəsi -Ø [mm] | 112 mm |
| Səth | Yağ |
| Təkər hub diametri [mm] | 67 mm |
| Əyləc diskinin növü | Havalandırılan |
| Əyləc diskinin qalınlığı [mm] | 28.2 mm |
Uyğun avtomobillər
- Mercedes-Benz (45)
OEM kodları
Orijinal ehtiyat hissələrinin nömrəsi ilə müqayisə edilə bilən OEM istinad nömrə(ləri).
- BOSCH0 986 479 C76
- BREMBO09.A448.20
- BREMBO09.A448.21
- CAR142.1101
- VALEO197200
- MERCEDES-BENZ203 421 13 12
- FEBI BILSTEIN26107
- ZIMMERMANN400.3624.00
- ZIMMERMANN400.3624.20
- ATE428177
- PAGID54198
- PAGID54198PRO
- BENDIX562354B
- JURID562354J
- HELLA8DD 355 109-401
- HELLA PAGID8DD 355 109-401
- HELLA8DD 355 109-411
- HELLA PAGID8DD 355 109-411
- TEXTAR92119800
- TEXTAR92119803
- TEXTAR98200 1198 0 1
- MERCEDES-BENZA 203 421 13 12
- GALFERB1.G228-0177.1
- DELPHIBG3985
- FTEBS7072
- FERODODDF1582
- FERODODDF1582-1
- TRWDF6153S
- TRWDF7304
- GALFERG2128177
Analoqları
- Sifariş etQiyməti:221.00₼
- Sifariş etQiyməti:141.00₼
- Sifariş etQiyməti:106.00₼
- Sifariş etQiyməti:124.00₼
